All-in-one battery system
Solar, storage and backup in one NEOVOLT stack: a single-phase or three-phase hybrid inverter on 7 to 56 kWh of battery. Held in stock in the UK.
28 kWh stack. Visualisation.
- 7–56 kWhin one stack, 690 mm wide
- <4 msswitch to backup
- IP66battery enclosure
- 10 yearswarranty
Why NEOVOLT
A clean white stack, 690 mm wide and 240 mm deep. NEOVOLT serves more than 80 countries, by the manufacturer's count. Digisafer Ltd is the official UK distributor, with stock and support based here.
All in one
A hybrid inverter on its own battery stack. Solar, storage, grid and backup run through one unit, with new panels or an existing solar inverter.
Stacks like building blocks
Choose 7 kWh or 14 kWh modules and stack them on one footprint, from 7 to 56 kWh. NEOVOLT rates the plug-and-play stack at 15 minutes.
Backup without a gateway
The inverter's backup output takes over in under 4 ms. Backup Box Pro is only needed to keep a whole house on, up to 63 A per phase.
Sealed and self-heating
The battery enclosure is IP66, and the modules warm their own cells to keep charging through frost, down to −20 °C.
Built to last
LFP cells rated for 8,000 cycles, and a 10-year warranty.
Ready for the DNO
All five inverters are on the ENA register for G98 or G99, and for G100.
UK stock, UK support
Held in stock in the UK. Technical support comes from our own team, by phone.
Simple from your phone
The Neovolt app shows solar, battery and grid as they happen, and sets the hours the battery charges.
One footprint, 7 to 56 kWh

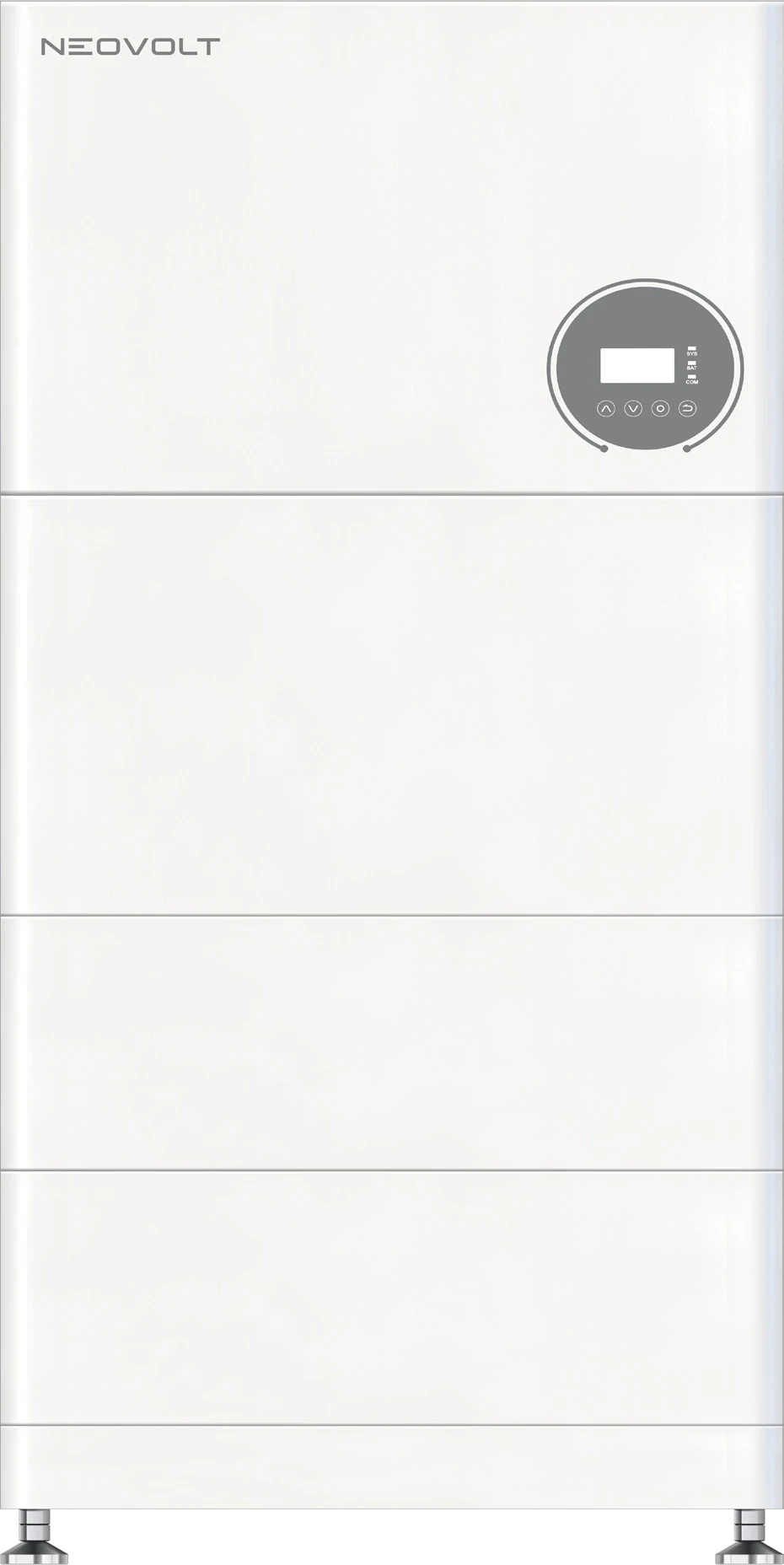

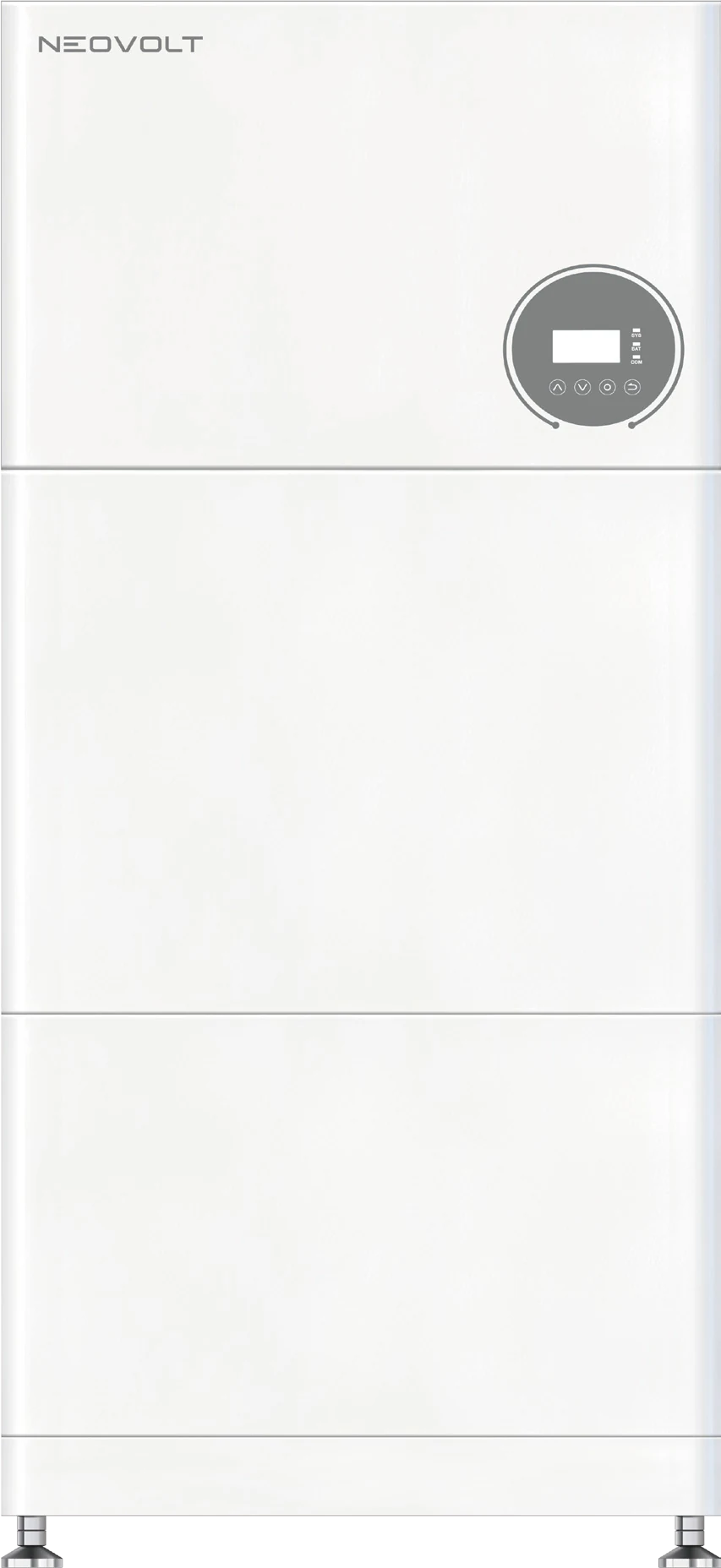

Every stack is 690 mm wide and 240 mm deep. Build it from 7 kWh modules, up to eight, or from 14 kWh modules, up to four.
When the grid drops, the house stays on
Backup is built into the inverter, so the circuits on its backup output need no separate gateway. It takes over in under 4 ms, with up to 8 kVA on single-phase and 15 kVA on three-phase.
Use more of your own solar
Store the surplus by day and use it after dark. A single-phase inverter takes up to 10 kW of PV and a three-phase one up to 30 kW, with energy management built in.
- Single-phase inverters5, 6 and 8 kW
- Three-phase inverters10 and 15 kW
Built for every season
The battery modules are sealed to IP66 and warm their own LFP cells when it is cold, so the stack keeps working through frost and summer heat.
- Battery enclosureIP66
- Charge and discharge−20 to 50 °C
- Cell typeLFP, 8,000 cycles
- Battery noise at 1 mUnder 30 dB
Watch it from your phone

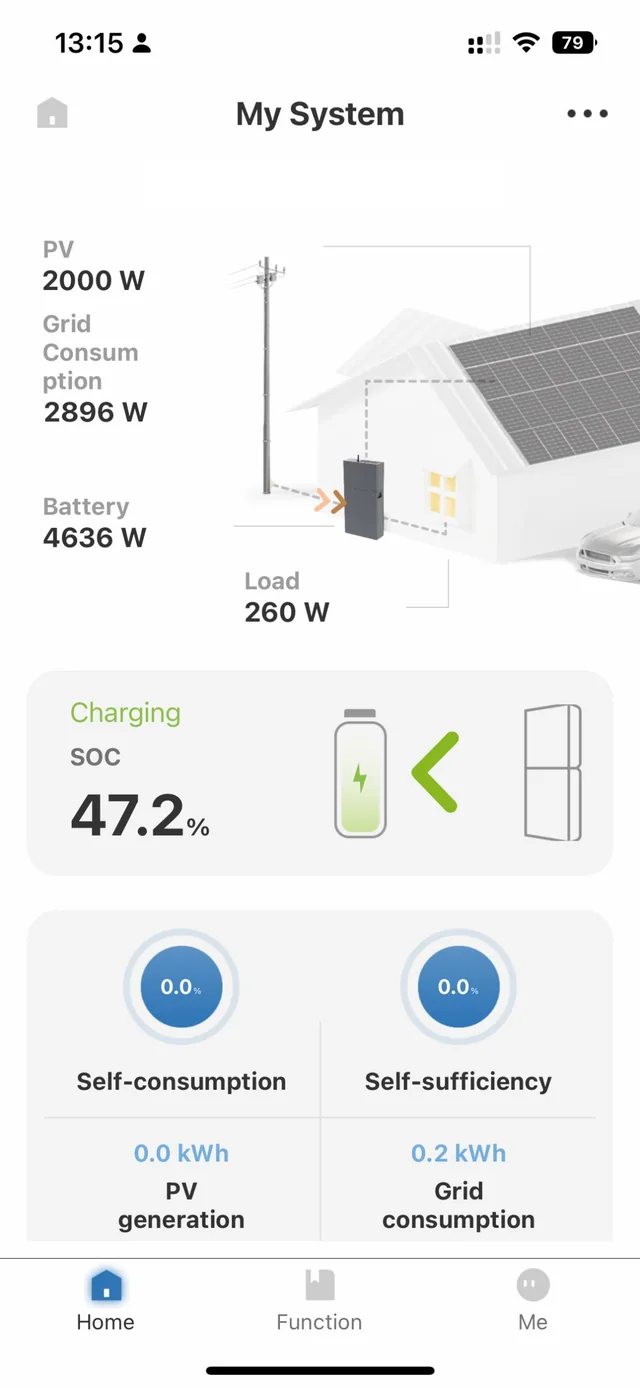

The Neovolt app shows solar, grid, battery and home load as they happen, and lets you set the hours the battery charges from the grid, for example overnight on an off-peak rate.
For iPhone and Android.
The UK range
Choose the inverter for the supply, then build the battery in 7 or 14 kWh steps.
Single-phase, 5 to 8 kW
SPH5K, SPH6K and SPH8K. Up to 10 kW of PV on two MPPT inputs, with a backup output.
Three-phase, 10 and 15 kW
TPH10K and TPH15K. Up to 30 kW of PV on three MPPT inputs, with a three-phase backup output.
- BW-BAT-14S-H battery14 kWh modules, one to four in a stack
- BW-BAT-07S-H battery7 kWh modules, one to eight in a stack
On the ENA register
All five inverters are listed on ENA Connect Direct for G98 or G99, and for G100. The references, the documents and the stack sizes are on the installer page.
- BW-INV-SPH5KG99 and G100
- BW-INV-SPH6KG99 and G100
- BW-INV-SPH8KG99 and G100
- BW-INV-TPH10KG98 and G100
- BW-INV-TPH15KG99 and G100
